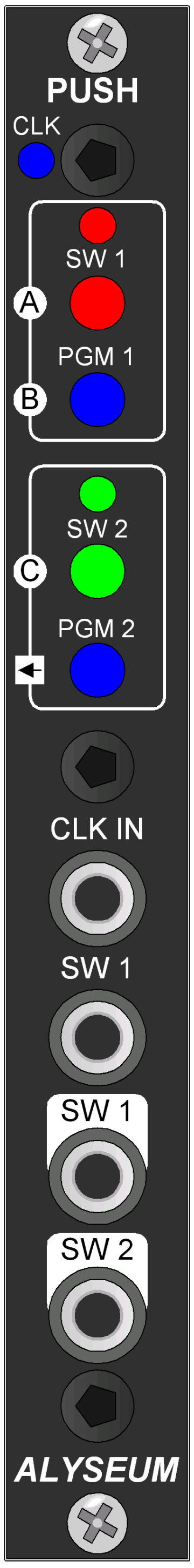

PUSH is simply 2 independent and programmable push buttons, but each push button has a multitude of modes, some of which are unique!
Its primary uses are trigger/gate control in live applications, CLK creation, manual synchronisation, exploration of non-linear rhythms, and more!
So you've got a 3HP tool that meets all your needs for manual and organic control of your Eurorack.
7 modes for the red push button and its output SW 1
● GATE : The output remains active as long as the red push button is pressed.
● TRIG : Generates a TRIG of 1mS each time the red push button is pressed.
● DUAL TRIG : Generates a TRIG of 1mS each time the red push button is pressed/released.
● ON/OFF : Toggle switch function.
● ON/OFF CLK : Same as point 4 and duplicated on the first rising edge of the CLK input..
● OFF CLK : During the time the pushbutton is pressed, the output is set to zero.
● SAMPLE CLK : Measures the duration of each period (500Hz to 100 Sec.). If the red push
button is pressed, the last period measured is repeated ad infinitum on output SW 1, press a
second time and the operation stops and so on.
6 modes for the green push button and its output SW 2
● The same 4 first modes as SW1
● HUMAN CLK : Measures the period (1 to 100 Sec.) between a double press of the green
push button, then repeats this period ad infinitum.
● HUMAN RATIO CLK : Measures the period (1 to 100 Sec.) between three presses of the
green push button, then repeats this period ad infinitum with respecting the duty cycle.
Technical details
● Power requirement 12mA @ +12V and 0mA @ -12V.
● Polarised power header and protection against reverse polarity.
● Eurorack 3 HP wide, maximum depth 26mm.
