PLEXUS is a module for musicians/technicians who are looking for new ways to generate sound.
PLEXUS is mainly an experimental/utility module, and I've made an limited serie.
So, it is sold as is, without support, assistance and video.

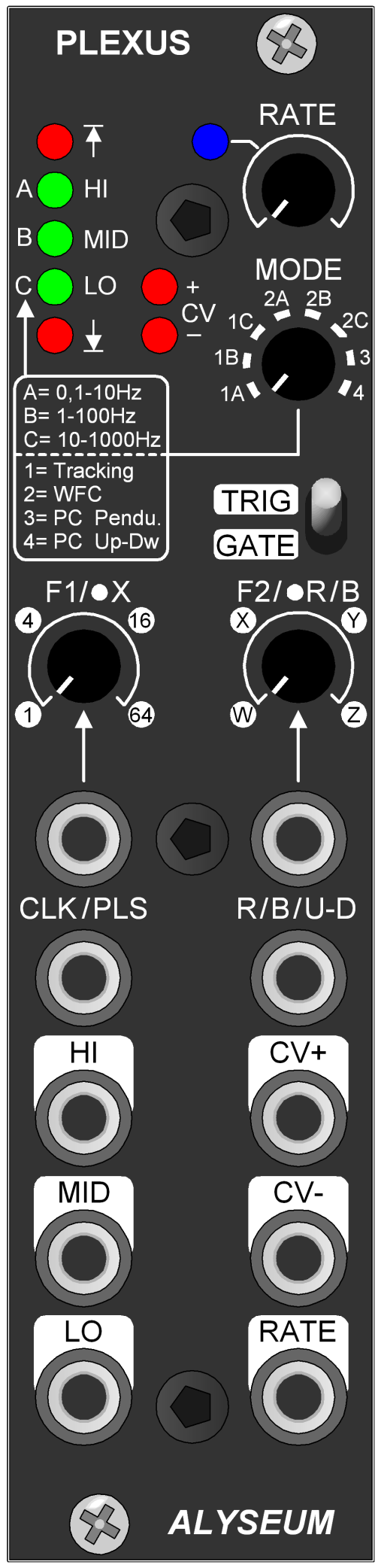

PLEXUS
129.00 €
Price without VAT & taxes
When the EXTRACTOR module was released, I announced that 2 others experimental modules would follow.  Finally, these two modules were simplified and merged into a single one named PLEXUS.

PLEXUS is the first logic and analog operator based on time, offering 4 exclusive and innovative modes for controlling your modules in new and unexplored ways.  It's up to you to discover time-based reactions and counter-reactions.

❶  Frequency Tracking
According on the frequency F1 set point and the CLK input, the CV+ output increases if the CLK signal is greater than F1 and vice versa following the RATE oscillator.

❷  Window Frequency Comparator
Using the frequency F1 + F2 set points and the CLK input, the CV+ output increases if the CLK is greater than - OR - is frozen if equal to - OR - decreases if less than the comparator window following at the RATE oscillator.

❸  Pulse Counter Pendulum
With each pulse PLS, the CV+ output increases, reaches its maximum and decreases, and so on.  A 2, 4, 16 and 64 pulses multiplier and 2 Reset/Break sub-modes extend the possibilities.

❹  Pulse Counter Up/Down
At each pulse, the CV+ output increases when the U-D input is set to 1 or decreases if set to 0.  A 2, 4, 16 and 64 pulses multiplier extends the possibilities.

3 HI-MID-LO, Trigger or Gate outputs for activating events, effects or ....  Depending on the needs of your imagination.
PLEXUS
