Also take a look at the HOLD module, which is an extension of SELECTOR, offering 8 digital addressed outputs selectable between Trigger or Gate and 1 CV input to 8 analog addressed outputs selectable between S&H or T&H.
SELECTOR
139.00 €
Price without VAT & taxes

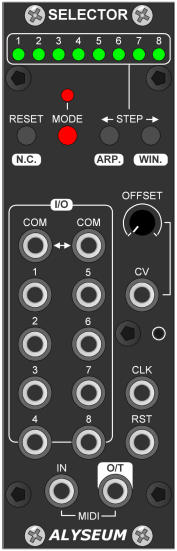

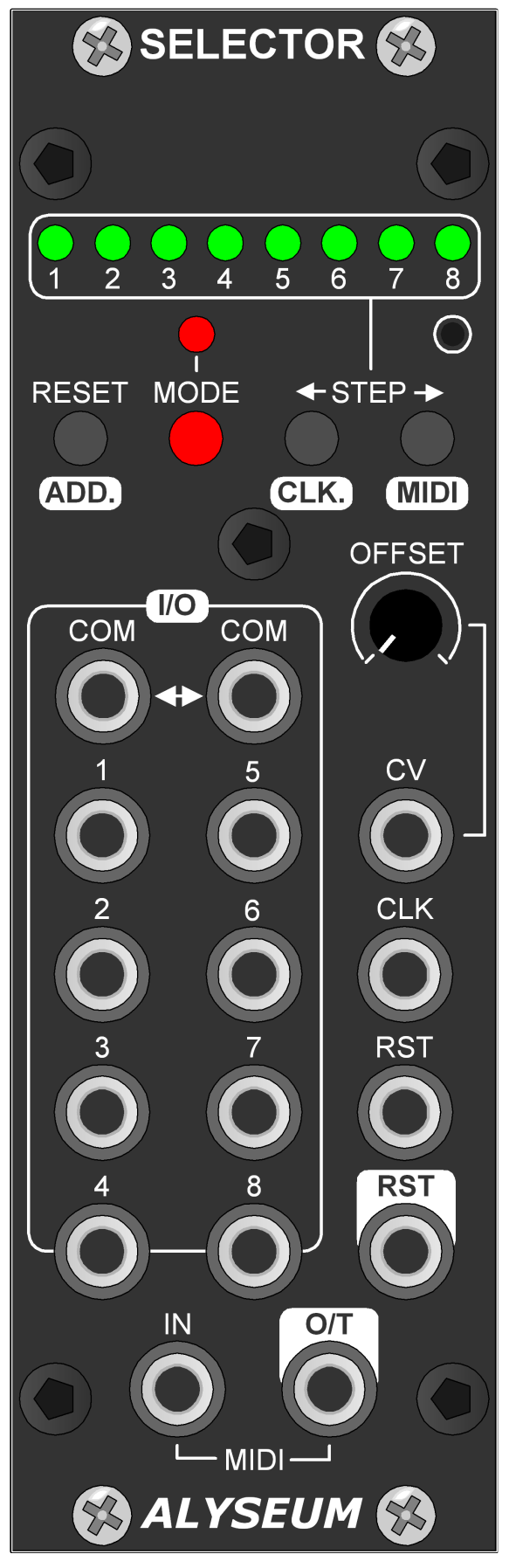

SELECTOR is an analogue 8 positions switch that is probably the most versatile in terms of connectivity, control and expansion in the modular world!
SELECTOR module is a fully bi-directional Sequential Switcher 8 ↔ 1, also called Multiplexer 8 → 1 or Demultiplexer 1 → 8.
Up to 8 SELECTOR modules can be chained to create a bigger Selector up to 64 ↔ 1! Only one Switcher is active at a time.
SELECTOR can be controlled by 8 different Modes of wich 5 exclusive
1. Standalone by push buttons.
2. Slave of the MATRIX modules linked to its Preset & Bank management.
3. CV input with bipolar offset adjustment.
4. MIDI Note or MIDI CC input.
5. Sequential switcher with MIDI CLK input.
6. Sequential Switcher with CLK input and her programmable steps number.
7. Sequential Switcher with CLK + RST inputs.
8. CV & CLK Inputs, like a S&H or STROBE. NEW ! (Firmware 1.1)
Two unique features increase the power of the different modes
1. An "Arpeggiator-like" with 4 patterns is available for the Modes 5, 6 & 7.
2. A "Steps Window" function is available for the Modes 3 until 8, and allows you
to freely choose a range of steps in number and location on the fly.
Technical details
● Full analog signal path from in to out.
● Solid state Switcher type DG408 for an excellent Tracking Voltage.
● Simple firmware upgrades by MIDI port.
● Protection against reverse polarity.
● Eurorack 8 HP wide.
● Delivery with a DIN5 to Jack MIDI adapter + Jack to Jack MIDI cable.
