Discontinued

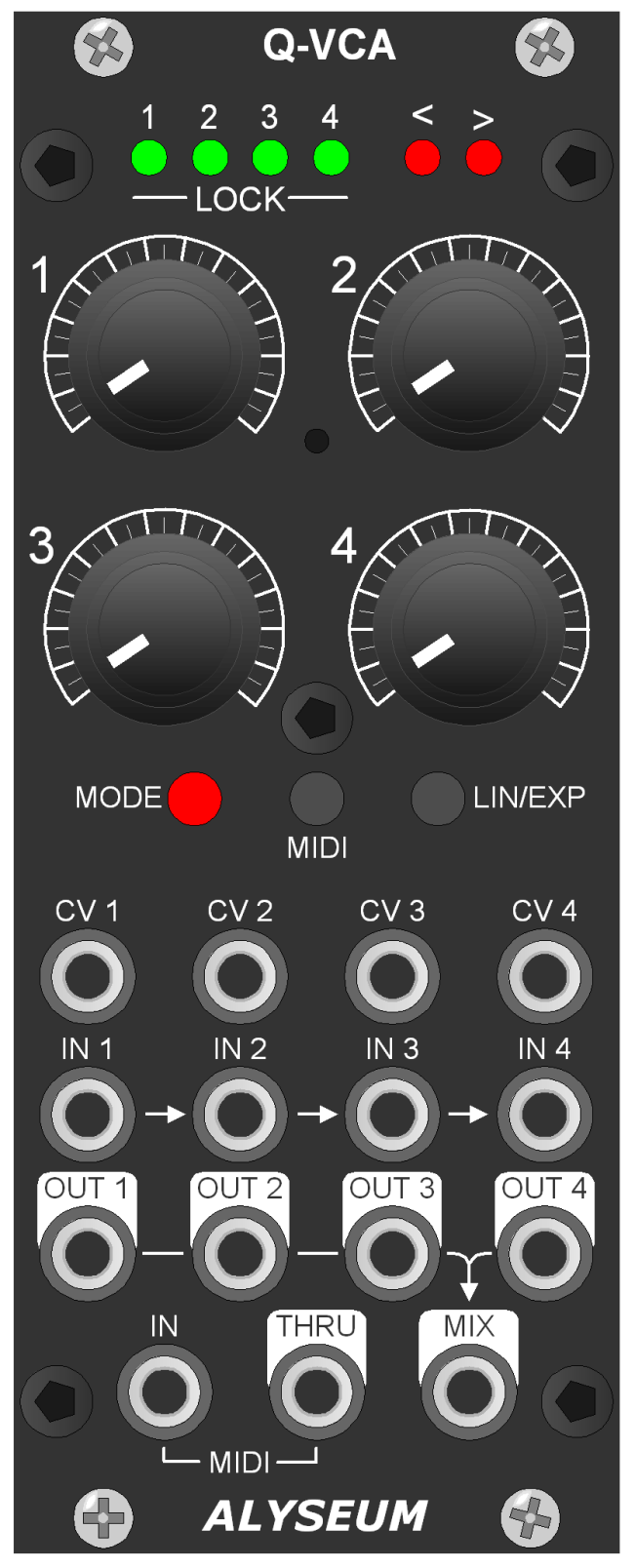

The Q-VCA module is a versatile,  dynamic  and  high-quality Quad VCA.

Each VCA can be controlled linearly or exponentially.


The classic features are:
   ●  Insert a jack into the CV IN input and the VCA is 100% Analog.
   ●  Each VCA can be controlled linearly or exponentially.
   ●  Inputs chaining for multiple VCA
   ●  No connected output is routed to the MIX output.


In addition, 4 unique VCA control modes are:
   1.  Manually via the potentiometer.
   2.  By a programmable MIDI controller.
   3.  Use with the MATRIX II  –  To avoid step, requires crossing between the
        VCA & potentiometer values and then activates the VCA update.
   4.  Use with the MATRIX II  –  Turn the potentiometer and the VCA are
        updated directly

Features:
   ●  Full analog signal path from in to out.
   ●  High quality VCA type AS3360
   ●  Simple firmware upgrades by the front panel MIDI port.
   ●  Polarised power header and protection against reverse polarity.
   ●  Delivery with a MIDI1.0 to Jack MIDI + Jack to Jack MIDI cables.
   ●  Eurorack 10 HP wide.
Q-VCA
