Back to the Matrix ..... and more!
The ALYSEUM MATRIX II module consists of a switched dynamic matrix, both analog and digital in nature, which sports 15 inputs and 16 outputs. The 16th input is connected to the unassigned outputs.
A special 256 LED display made for a fast, friendly and intuitive graphical user interface, with each LED representing one of the 256 points of connection available.
The MATRIX II contain 7 Banks of 32 Presets and can be loaded by:
1. CLK + RST inputs to obtain a Sequential Matrix I/O router.
2. CV input and its offset adjutement.
3. MIDI Note On or PGM Change.

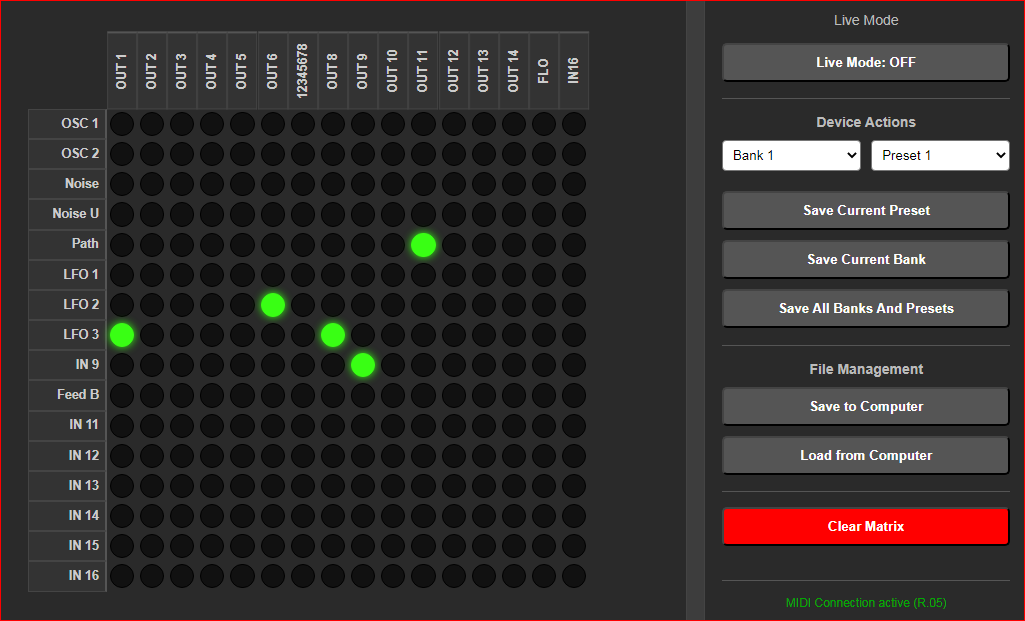

4. The front panel and/or the free cost MATRIX II editor.
The banks & presets of the expander Q-VCA and SELECTOR modules can be controlled by MIDI from the MATRIX II.
Features:
● 16 X 16 Matrix switch both Analog and Digital (DC-coupled).
● Control via front panel or by free editor (OSX and WIN32/64).
● Analog distortion: 0.01% (@ ±2 V).
● Analog bandwidth: 0Hz to 20KHz (± 0,1 dB).
● Isolation between channels: 92 dB at 1KHz.
● Inputs & Outputs buffered with unity gain/low offset Op-Amp.
● Offset adjustement for the CV control.
● Simple firmware upgrades by the front panel MIDI port.
● Polarised power header and protection against reverse polarity.
● Eurorack 22 HP wide (4 HP less as the old MS-MATRIX).
● Delivery with a short MIDI1.0 to Jack MIDI adapter.
