User's Manual - RECORD
Price without VAT, taxes & shipping
Ever wish you could get a stereo recording of your modular system without relying on external devices?
Ever wanted a stereo playback system with the highest possible audio fidelity inside your Eurorack system?

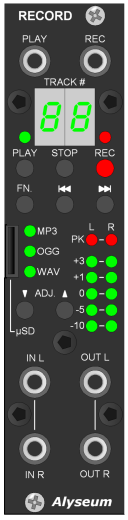

RECORD Eurorack module offers a multitude of audio formats and high-quality audio streaming and recording with no fuss and in a small enough package to fit in every setup.
Having that audio playback inside your case and recording every patch you make has now became so easy!
And... only 6HP!
> Storage: µSD card format, capacity until 32GB (FAT12, FAT16 and FAT32
supported), or 50 Hours maximum record time in WAV @ 44,1KHz, 16 bits.
> Automatic format and config file generated for empty µSD card
> 99 Tracks in MP3 + 99 Tracks in OGG + 99 Tracks in WAV files management.
> Direct control via front panel: Play one track, Play all tracks, Pause, Stop,
Pause before Record, Record, Record pause, Track selection, 2 or 8 FF/BW,
Delete track, Input & Output Level, Format selection, µSD retry & LED luminosity.
> External control by pulse or gate signal: Play, Record & Pause.
> Recording format specifications:
> MP3: 320 kbit/s CBR, 48 kHz stereo,
> OGG Vorbis: 300 kbit/s VBR, 48 kHz stereo
> WAV: 1536 kbit/s, 48 kHz 16-bit PCM stereo
> Recording and Playback audio specifications:
> ADC & DAC resolution: 18bits
> Frequency response 20-20kHz (+/- 0.1dB)
> Line input S/N ratio: 90dB
> Line output S/N ratio: 94dB
> Line input distortion: 0,005%
> Line output distortion: 0,02%
> Upgrading firmware is done via the µSD card.
> 2 X 6 LEDs VU Meter.
> Eurorack 6 HP wide.
.... A Performance Recorder
